It is usually simple to attach a power supply unit (PSU) to a tower case, but care must be taken to ensure the PSU’s operation and avoid damage. Here is an in-depth, step-by-step guide:
Steps to Attach a Power Supply to a Tower Case
1. Prepare Your Workspace
- Ensure Safety First: Unplugging everything and touching a grounded metal surface (or using an anti-static wrist strap) to get rid of any static electricity.
- Clear Area: You should work on a clean, flat area that has enough light.
2. Identify the PSU Mounting Location
unplugging everything and touching a grounded metal surface (or using an anti-static wrist strap) to get rid of any static electricity.

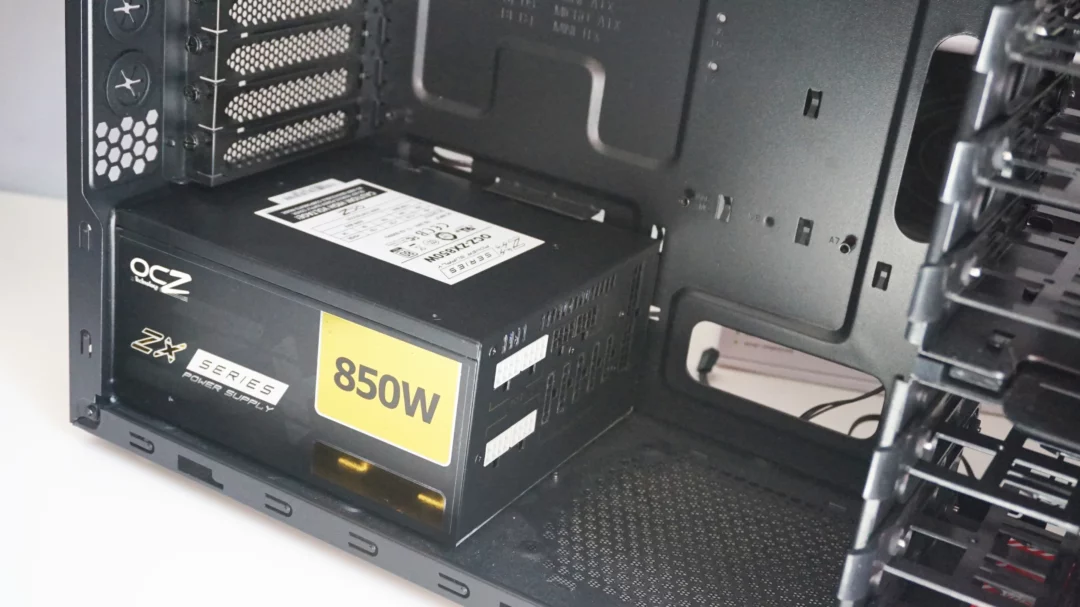

- ATX Cases: Most tower cases have a place to put the power supply (PSU) either at the front or back of the case, near the bottom.
- There should be screw holes, PSU mounts, and an open hole for the PSU’s vents.
3. Orient the PSU Properly
- Fan Direction: Look at the PSU to see which way the fans are facing. Most tower cases have a hole near the fan that lets air move. Where to put the PSU:
- Bottom-mounted cases: If there are air holes at the bottom, the fan should face downward.
- Top-mounted cases: The fan should face up toward the case’s grille or airflow.
Please ensure that the PSU’s ports are accessible from inside the case.
4. Secure the PSU with Screws
Locate the pre-existing screw holes in both the PSU and the case. After that:
- Put the PSU where it needs to be on the wall.
- Line up the holes for the screws.
- Use the case or PSU screws to attach the PSU to the case frame. Tighten them all the way, but don’t go too far or you could damage the PSU case or strip the threads.
5. Connect Power Cables
Once you have safely attached the PSU, proceed as follows:
- The 24-pin motherboard power wire and any other ports you need, like CPU power, GPU power, and SATA cords, should be connected based on how your components and case are set up.
Pro Tips for Attaching a Power Supply
| Tip | Why It’s Important |
|---|---|
| Verify PSU Compatibility | Ensure the PSU fits your case’s specifications, particularly size (ATX, SFX, etc.). |
| Check Airflow | Proper fan orientation maximizes cooling efficiency. |
| Cable Management | Use cable ties or routing options provided in the case for clean wiring and improved airflow. |
| Handle Gently | Avoid bumping or scratching the PSU during installation. |
Common PSU Installation Problems and Solutions:
| Problem | Solution |
|---|---|
| PSU doesn’t fit in the case | Verify case compatibility before purchasing. |
| Screw holes don’t align | Adjust the PSU orientation or double-check position. |
| Fan noise or overheating | Ensure proper ventilation and fan configuration. |
Summary:
To attach a power supply to a tower case, you usually find the PSU mounting area, line up the PSU, secure it with screws, make sure the fan is facing forward to allow airflow, and connect the wires correctly. Careful installation ensures optimal performance and safety.
